Connect to Databricks

This guide contains the necessary steps to connect a Databricks environment to your Elementary account.

Create service principal

1. Open your Databricks console, and then open your relevant workspace.

2. Click on your Profile icon on the right and choose Settings.

3. On the sidebar, click on Identity and access, and then under the Service Principals row click on Manage.

4. Click on the Add service principal button, choose “Add new” and give a name to the service principal. This will be used by Elementary Cloud to access your Databricks instance.

5. Click on your newly created service principal, add the “Databricks SQL access” entitlement, and click Update. Also, please copy the “Application ID” field as it will be used later in the permissions section.

6. Next, generate credentials for your service principal. Choose one of the following methods:

   Option A: Generate an OAuth secret (Recommended)

   On the service principal page, go to the Secrets tab and click Generate secret. Copy the Client ID (this is the same as the “Application ID” from step 5) and the generated Client secret — you will need both when configuring the Elementary environment.


   OAuth secrets are the recommended authentication method. They enable short-lived token generation with automatic refresh, providing better security than long-lived personal access tokens.

   Option B: Create a personal access token (legacy)

   In order to generate a personal access token for your service principal, you may first need to allow Token Usage for it. To do so, go to the settings menu and choose Advanced -> Personal Access Tokens -> Permission Settings, then make sure the service principal is in the list.



   Then, create a personal access token for your service principal. For more details, please click here.

7. Finally, in order to enable Elementary’s automated monitors feature, please ensure predictive optimization is enabled in your account. This is required for table statistics to be updated (Elementary relies on this to obtain up-to-date row counts)

Permissions and security

Required permissions

Elementary cloud requires the following permissions:

• Elementary schema read-only access - This is required by Elementary to read dbt metadata & test results collected by the Elementary dbt package as a part of your pipeline runs. This permission does not give access to your data.

• System metadata access - Elementary needs access to the system.information_schema.tables, system.information_schema.columns, system.query.history and system.access.table_lineage system tables. This access is used to get metadata about existing tables and columns, and to power features such as column-level lineage and automated volume & freshness monitors.

• Billing metadata access - Elementary needs access to the system.billing.usage and system.billing.list_prices. This allows Elementary to monitor the warehouse cost and alert on it.

• Storage read-only access - See details below.

Grants SQL template

Please use the following SQL statements to grant the permissions specified above (you should replace the placeholders with the correct values):

-- Grant read access on the elementary schema (usually [your dbt target schema]_elementary)
GRANT USE CATALOG ON CATALOG <catalog> TO `<service_principal_app_id>`;
GRANT USE SCHEMA, SELECT ON SCHEMA <elementary_schema> TO `<service_principal_app_id>`;

-- Grant access to system tables
GRANT USE CATALOG ON CATALOG system TO `<service_principal_app_id>`;

GRANT USE SCHEMA ON SCHEMA system.information_schema TO `<service_principal_app_id>`;
GRANT USE SCHEMA ON SCHEMA system.query TO `<service_principal_app_id>`;
GRANT USE SCHEMA ON SCHEMA system.access TO `<service_principal_app_id>`;
GRANT SELECT ON TABLE system.information_schema.tables TO `<service_principal_app_id>`;
GRANT SELECT ON TABLE system.information_schema.columns TO `<service_principal_app_id>`;
GRANT SELECT ON TABLE system.query.history TO `<service_principal_app_id>`;
GRANT SELECT ON TABLE system.access.table_lineage TO `<service_principal_app_id>`;

-- Grant access to billing metadata
GRANT USE SCHEMA ON SCHEMA system.billing TO `<service_principal_app_id>`;
GRANT SELECT ON TABLE system.billing.usage TO `<service_principal_app_id>`;
GRANT SELECT ON TABLE system.billing.list_prices TO `<service_principal_app_id>`;

Storage Access

Elementary requires access to the table history in order to enable automated monitors such as volume and freshness monitors. You can configure this in one of the following ways:

Option 1: Direct storage access

Elementary can access the storage directly using credentials that you configure. In the Elementary UI, choose Direct storage access under Storage access method.

When using this option, Elementary does not read the table data itself. It only reads the Delta transaction log, which contains metadata about the transactions.

For S3-backed Databricks storage, you can configure access in one of the following ways:

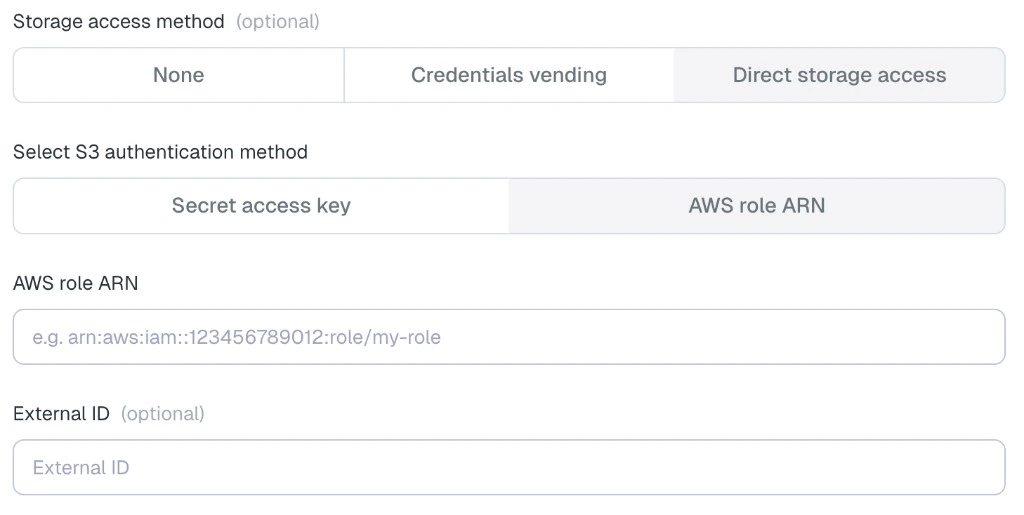

AWS Role authentication

This is the recommended approach, as it provides better security and follows AWS best practices. After choosing Direct storage access, select AWS role ARN under Select S3 authentication method.

1. Create an IAM role that Elementary can assume.
2. Select “Another AWS account” as the trusted entity.
3. Enter Elementary’s AWS account ID: 743289191656.
4. Optionally enable an external ID.
5. Attach a policy that grants read access to the Delta log files.

Use a policy similar to the following:

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Sid": "VisualEditor0",
      "Effect": "Allow",
      "Action": [
        "s3:GetObject",
        "s3:ListBucket"
      ],
      "Resource": [
        "arn:aws:s3:::databricks-metastore-bucket",
        "arn:aws:s3:::databricks-metastore-bucket/*_delta_log*"
      ]
    }
  ]
}

This policy is scoped to the bucket itself and objects matching *_delta_log*, so it does not grant access to other objects in the bucket.

Provide the role ARN in the Elementary UI, and the external ID as well if you configured one.

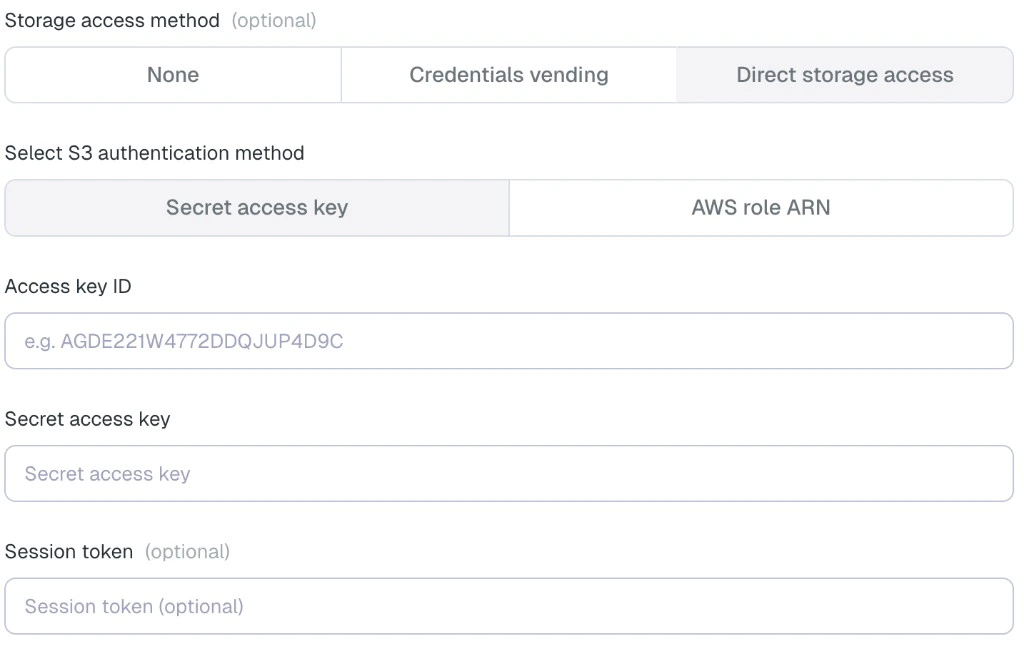

AWS access keys

If needed, you can instead provide direct AWS credentials. After choosing Direct storage access, select Secret access key under Select S3 authentication method.

1. Create an IAM user that Elementary will use for storage access.
2. Enable programmatic access.
3. Attach the same read-only S3 policy shown above.
4. Provide the AWS access key ID and secret access key in the Elementary UI.

Option 2: Credentials vending

Elementary can access the storage using temporary credentials issued by Databricks through credential vending. In the Elementary UI, choose Credentials vending under Storage access method.

This requires granting EXTERNAL USE SCHEMA on the relevant schemas.

When using this option, Elementary does not read the table data itself. It only reads the Delta transaction log, which contains metadata about the transactions.

Option 3: Fetch history using DESCRIBE HISTORY - Legacy

Elementary can fetch the table history by running DESCRIBE HISTORY queries on your Databricks warehouse. In the Elementary UI, choose None under Storage access method.

This require granting SELECT access on your tables. This is a Databricks limitation - Elementary never reads any data from your tables, only metadata. However, there isn’t today any table-level metadata-only permission available in Databricks, so SELECT is required.

To grant the access, use the following SQL statements:

GRANT USE CATALOG, USE SCHEMA, SELECT ON catalog <catalog> to `<service_principal_app_id>`;

This option is the least recommended, as it reuqires SELECT access and causes higher compute cost.

Add an environment in Elementary (requires an admin user)

In the Elementary platform, go to Environments in the left menu, and click on the “Create Environment” button. Choose a name for your environment, and then choose Databricks as your data warehouse type.

Provide the following common fields in the form:

• Server Host: The hostname of your Databricks account to connect to.
• Http path: The path to the Databricks cluster or SQL warehouse.
• Catalog (optional): The name of the Databricks Catalog.
• Elementary schema: The name of your Elementary schema. Usually [your dbt target schema]_elementary.

Then, select your authentication method:

OAuth (M2M) — Recommended

• Client ID: The Application (client) ID of the service principal (the “Application ID” you copied in step 5).
• Client secret: The OAuth secret you generated for the service principal (see step 7).

OAuth machine-to-machine (M2M) authentication is the recommended method for connecting to Databricks. It uses short-lived tokens that are automatically refreshed, providing better security compared to long-lived personal access tokens.

Access token (legacy)

• Access token: A personal access token generated for the Elementary service principal.

Add the Elementary IP to allowlist

Elementary IP for allowlist: 3.126.156.226
